Bild 1 von 5

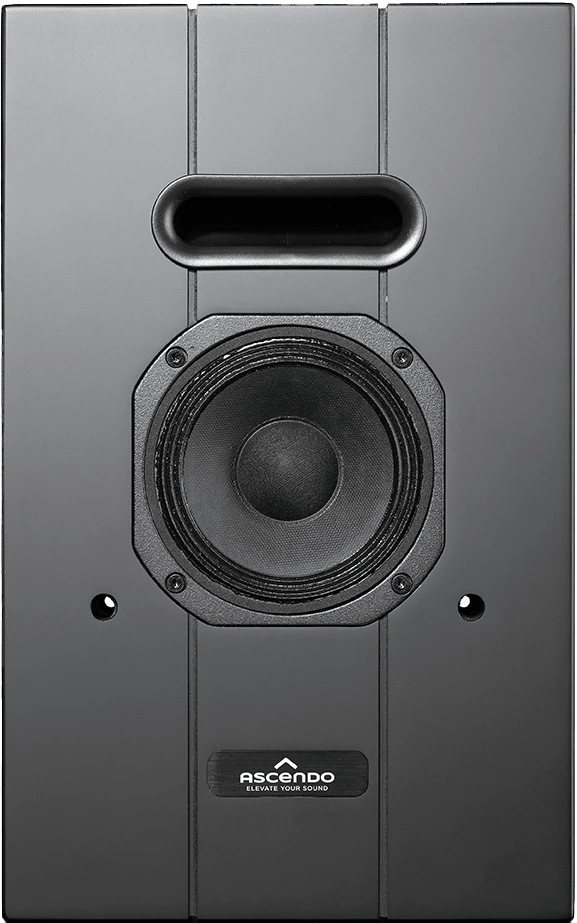

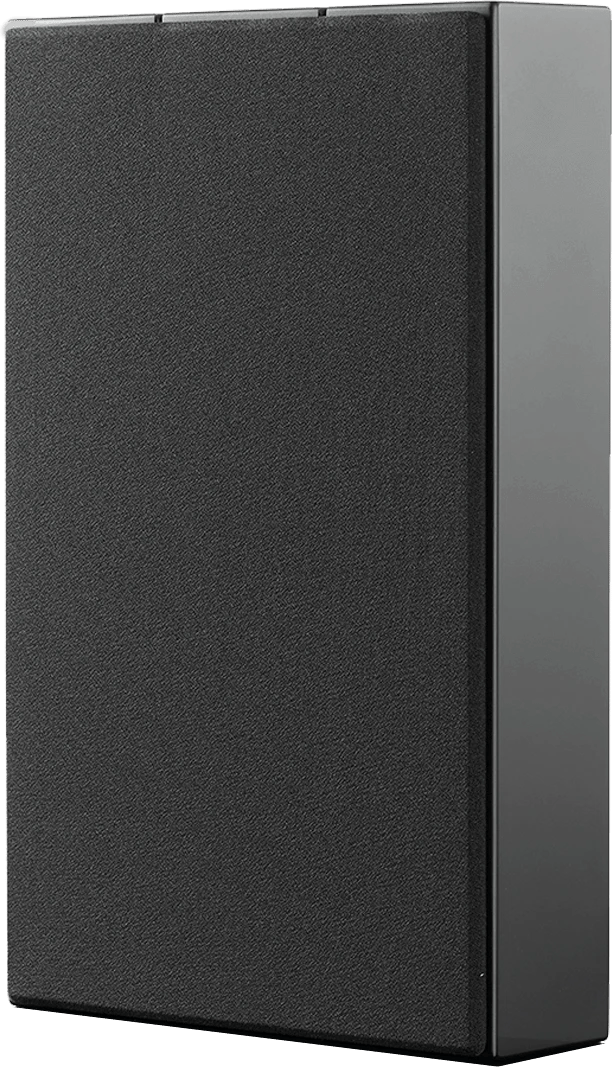

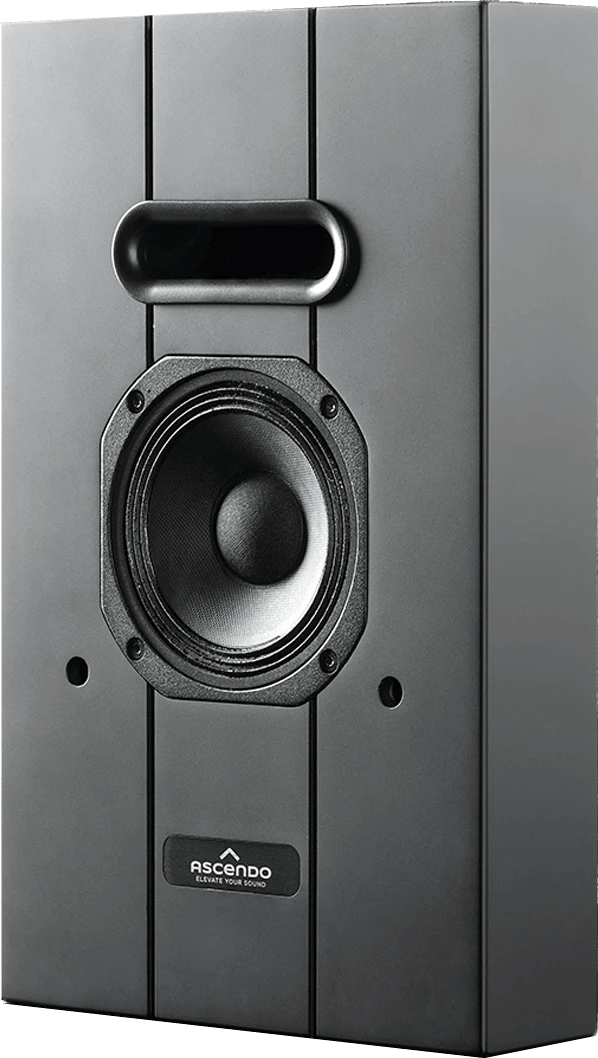

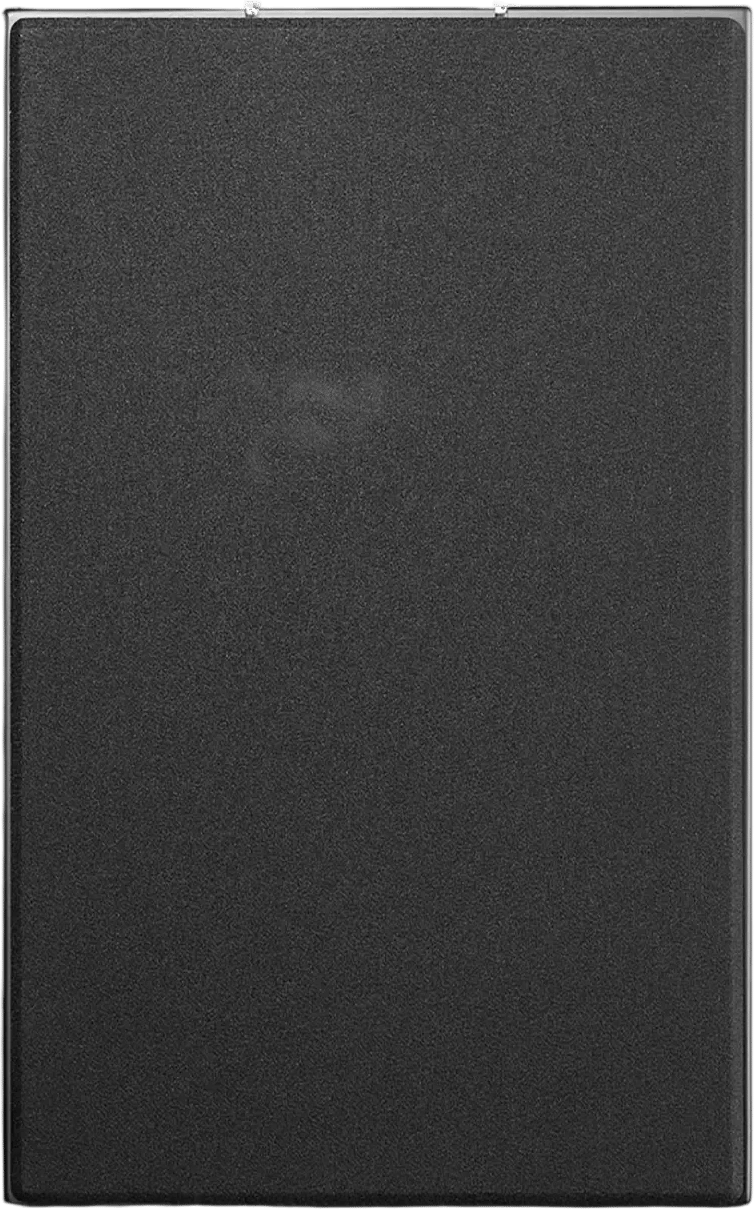

Der The5 Passive · On Wall kurz vorgestellt

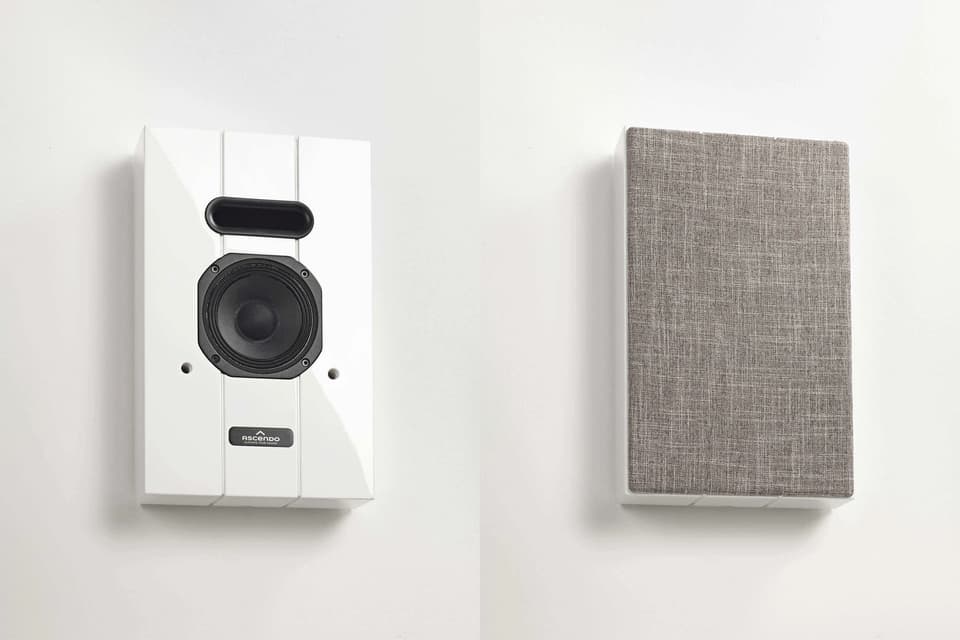

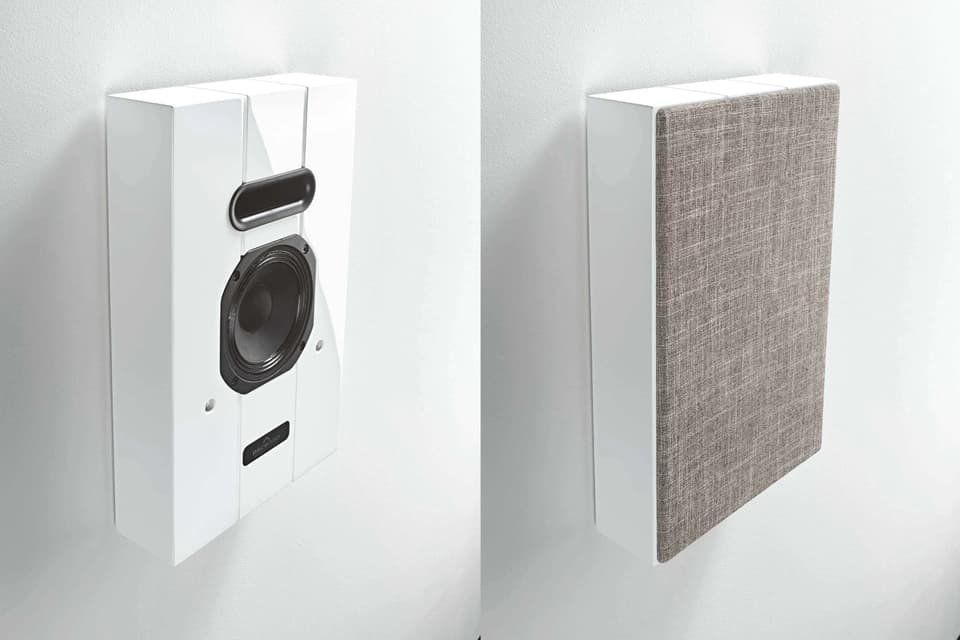

Quality is not a matter of size or budget. This impressively demonstrates our smallest speaker model, the passive The5-P (Previous name: CCM5-P). The The5-P is a true high-performance speaker whose centerpiece is a heavy-duty 13 centimeter large coaxial driver, provenient from the area of professional PA technology. The genes of this advanced coax driver not only care for an amazingly great acoustic bandwidth, but also provide an efficiency of 88 dB (1 watt/1 meter). The effectiveness of the The5-P therefore allows for the combination with lower output power amplifiers. For this reason, the smallest passive speaker from AiA is our top recommendation when it comes to the realization of smaller 3D home theaters operating with Dolby Atmos, Auro 3D or DTS:X. Another major advantage of the The5-P is its small depth of only 75 mm. This makes it the perfect choice for in-wall as well as on-wall assembly.

Eignet sich der The5 Passive · On Wall für Dich?

High Fidelity

Zwei Kanäle, Musik im Vordergrund.

Eher ungeeignet
Heimkino

Mehrkanal-Ton, Film im Vordergrund.

Gut geeignet
MultiRoom

Beschallung mehrerer Räume, Musik nebenbei.

Gut geeignet

Perfekt für Dich, wenn …

  • Dein Verstärker nicht viel Leistung hat.
  • die Lautsprecher an einem AV-Receiver laufen sollen.

Eher nicht für Dich, wenn …

  • Dein Lautsprecher auch tiefe Bässe ohne Subwoofer spielen soll.

Die Highlights von The5 Passive · On Wall im Überblick

  • Empfindlichkeit

    89 dB

  • Nennimpedanz

    8 Ω

  • Frequenzgang

    100 – 20.000 Hz

    -3dB

  • Empfohlene Verstärkerleistung

    100 W

  • Bass Konzept

    Geöffnet (Bass Reflex Port)

  • Maximaler SPL

    120 dB

  • Anzahl Tieftöner

    1

  • Gehäuse

    B × H × T

    250 mm400 mm75 mm

    nur Korpus · Gewicht 4 kg

Technische Daten

  • Leistungsdaten

    Maximaler SPL
    120 dB
    Frequenzgang-3dB
    100 – 20.000 Hz
    Belastbarkeit (RMS)
    100 W
    Empfindlichkeit
    89 dB
    Nennimpedanz
    8 Ω
  • Bass Port

    Bass Konzept
    Geöffnet (Bass Reflex Port)
  • Treiberanzahl

    Anzahl Tieftöner
    1
    Anzahl Hochtöner
    1
  • Gehäusemaße

    nur Korpus
    Höhe
    400 mm
    Breite
    250 mm
    Tiefe
    75 mm
    Gewicht
    4 kg

Anschlüsse

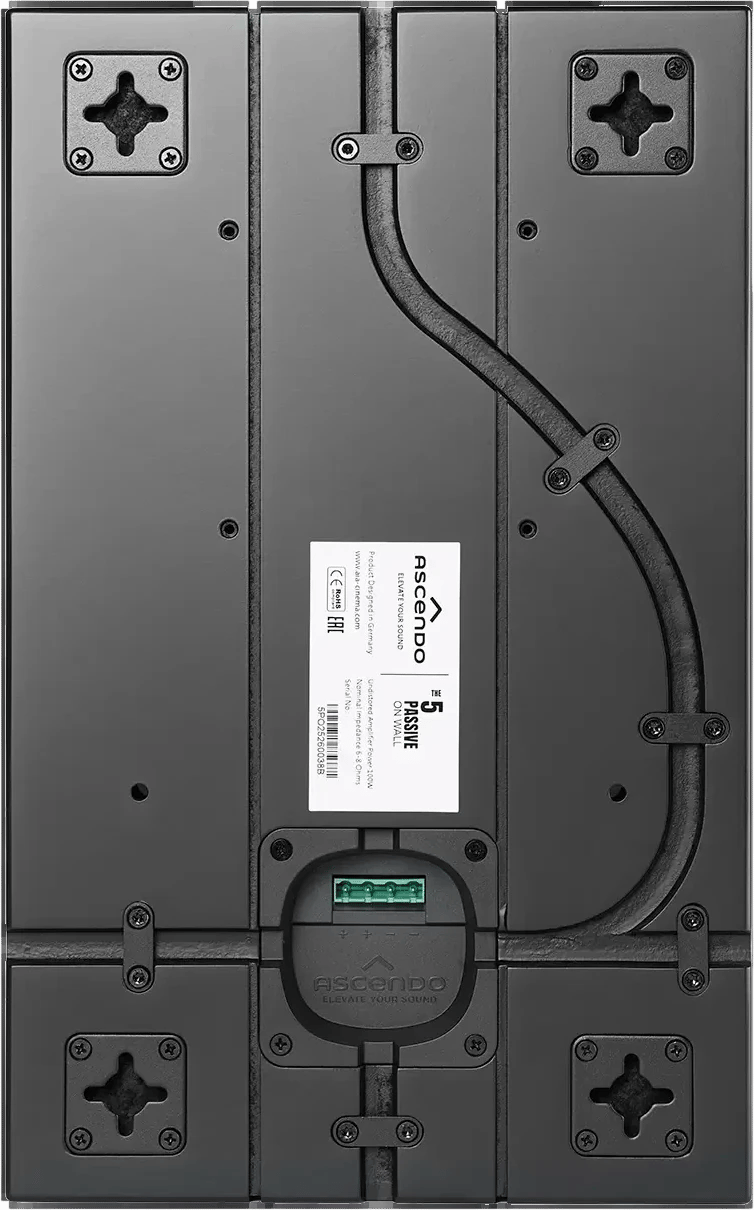

Rückansicht des Ascendo The5 Passive Lautsprechers mit Anschlüssen und Montageschrauben.

Rückansicht des Ascendo The5 Passive Lautsprechers mit Anschlüssen und Montageschrauben.

    • Terminal
