Der The10 Passive · Wedge 30 kurz vorgestellt

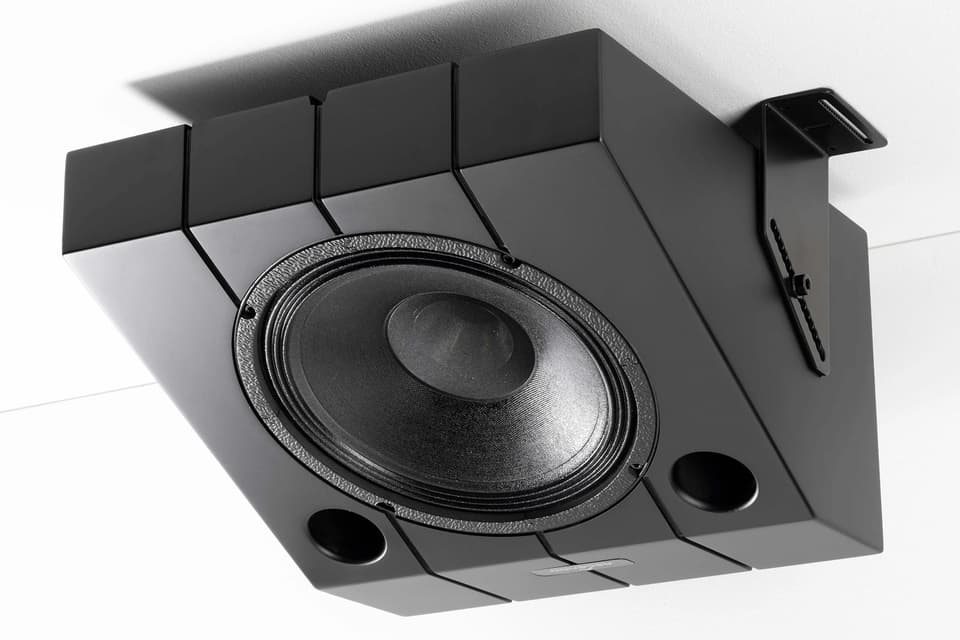

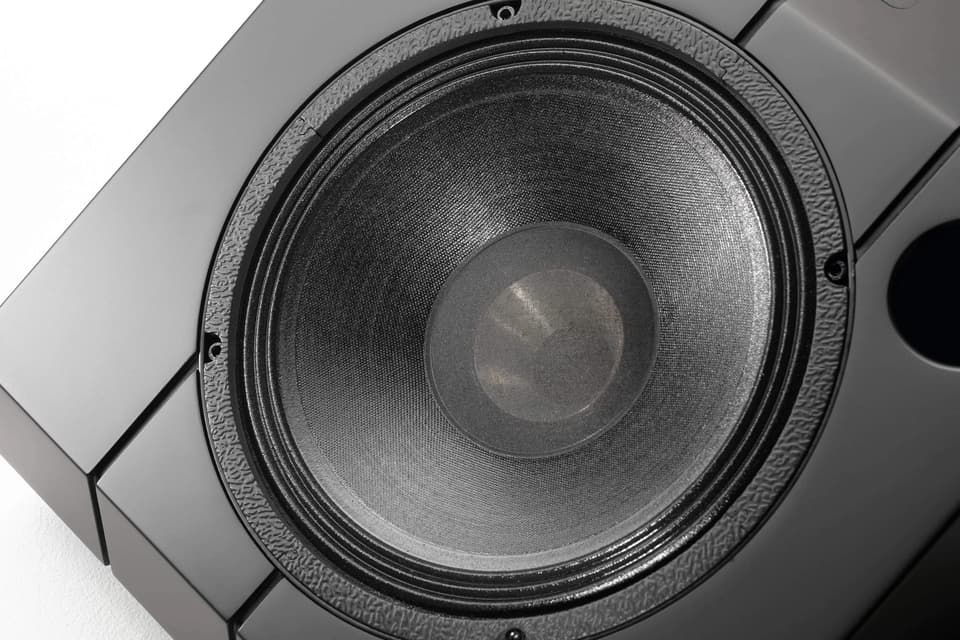

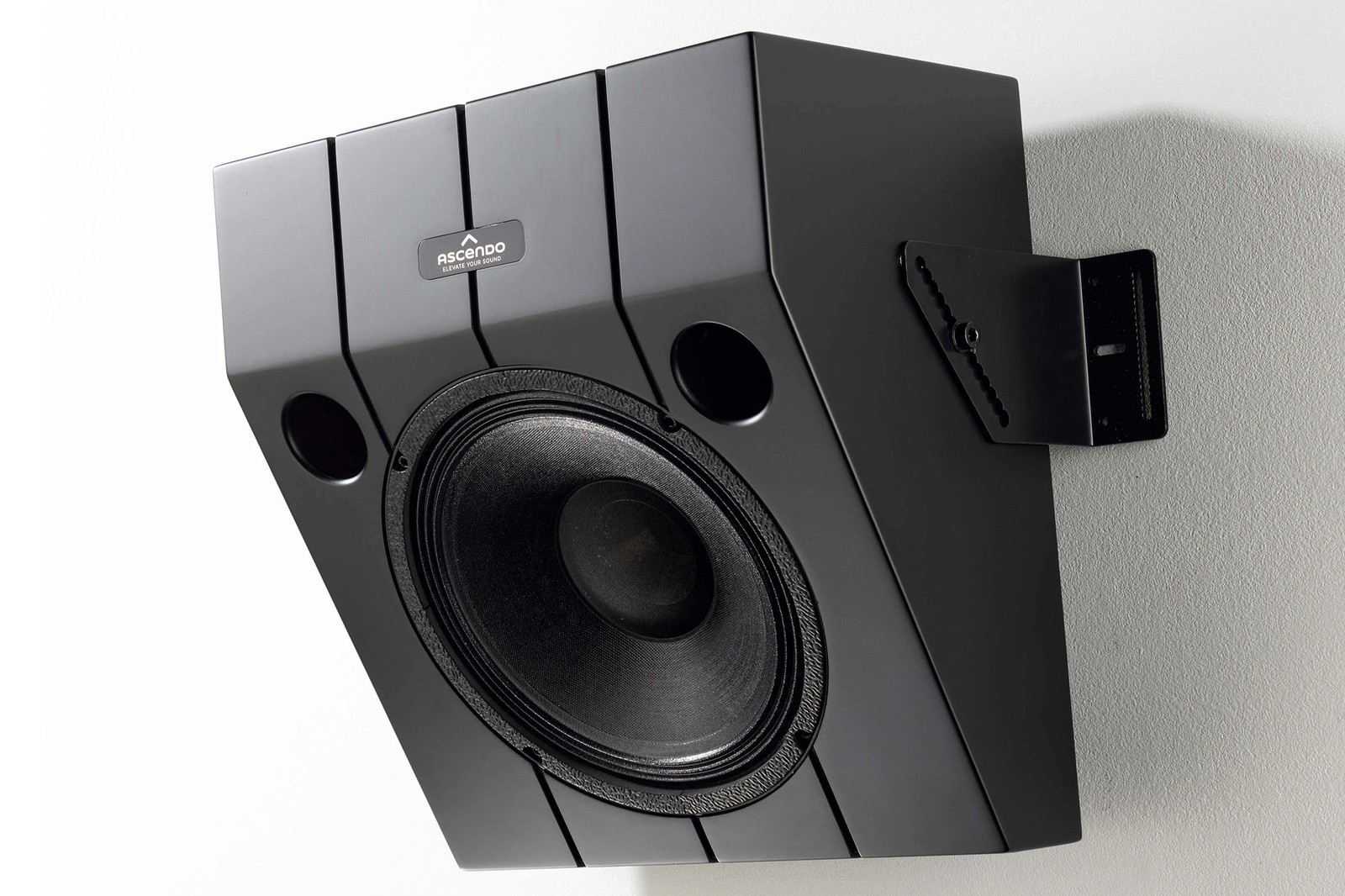

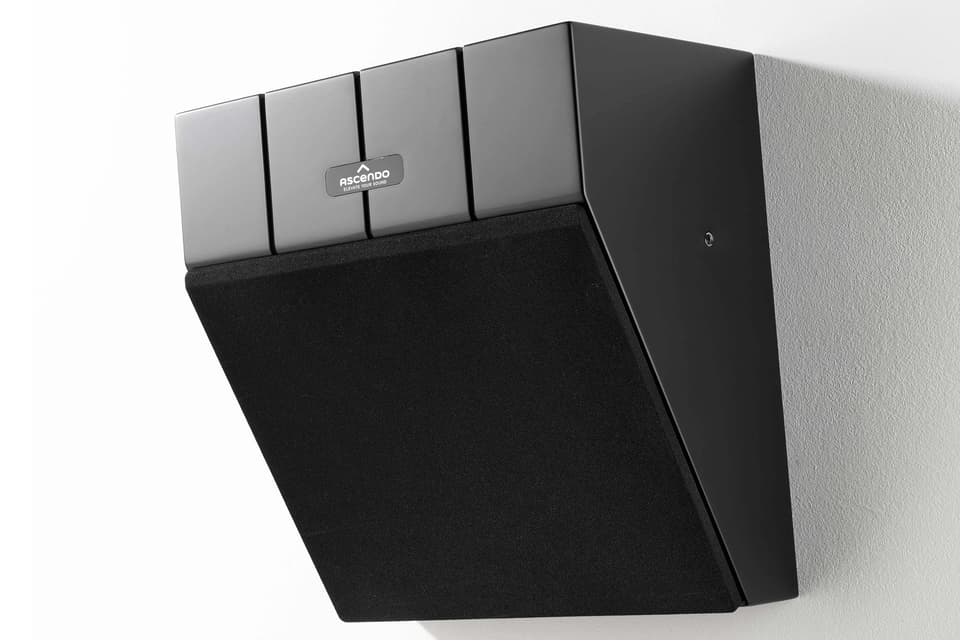

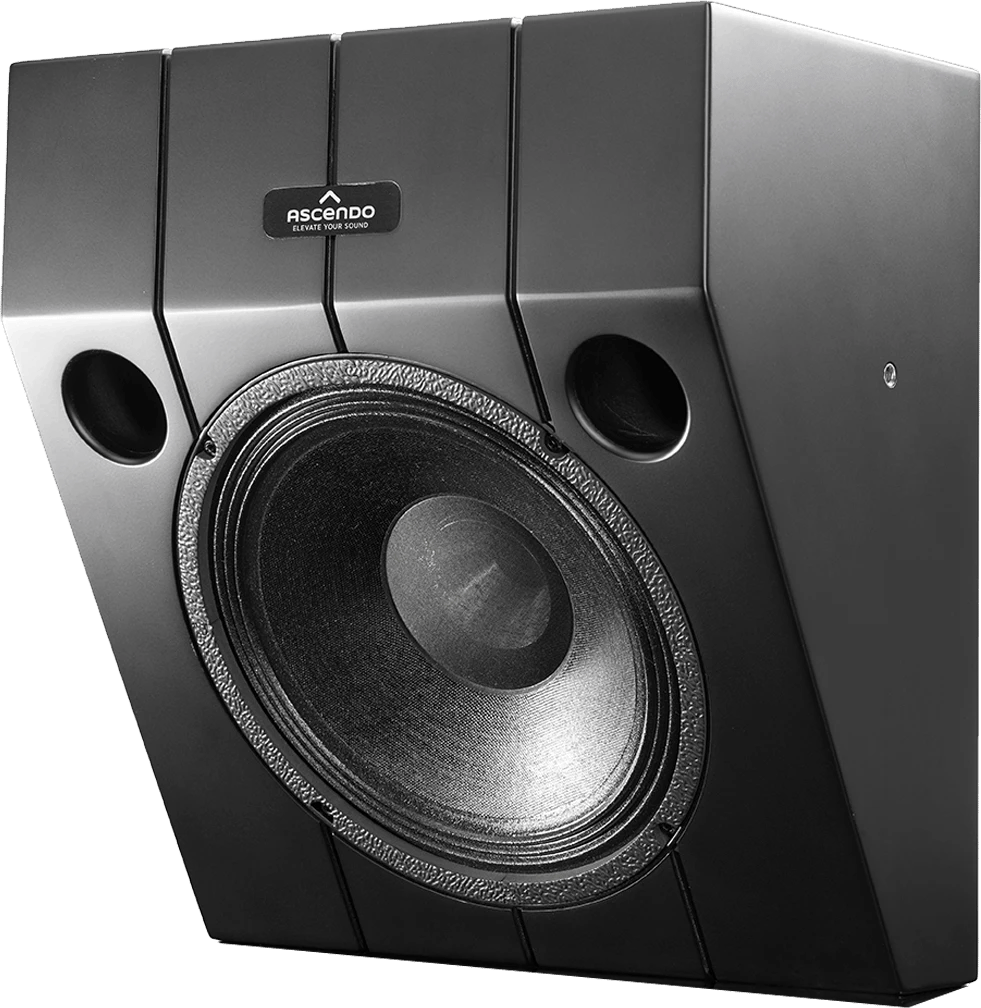

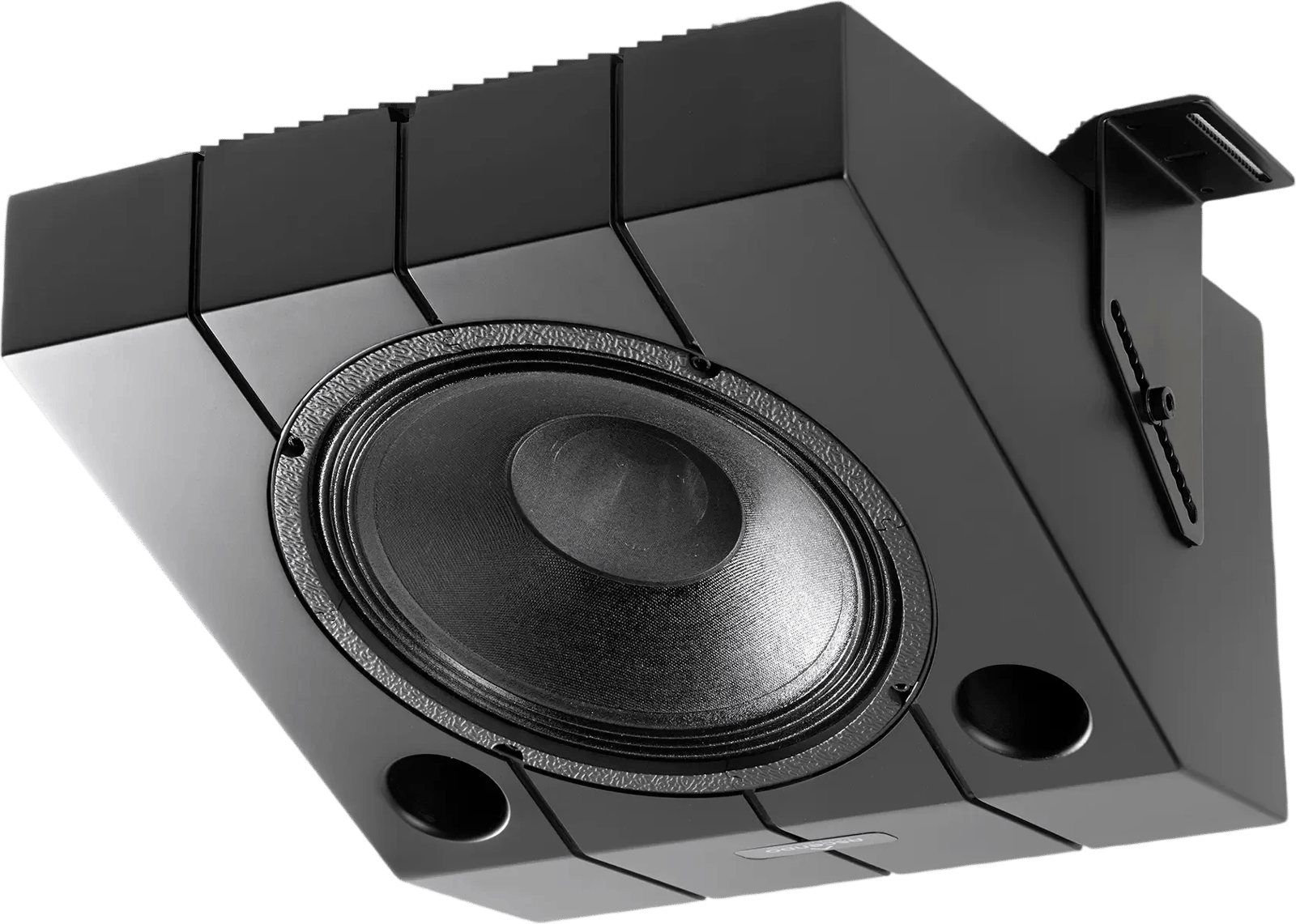

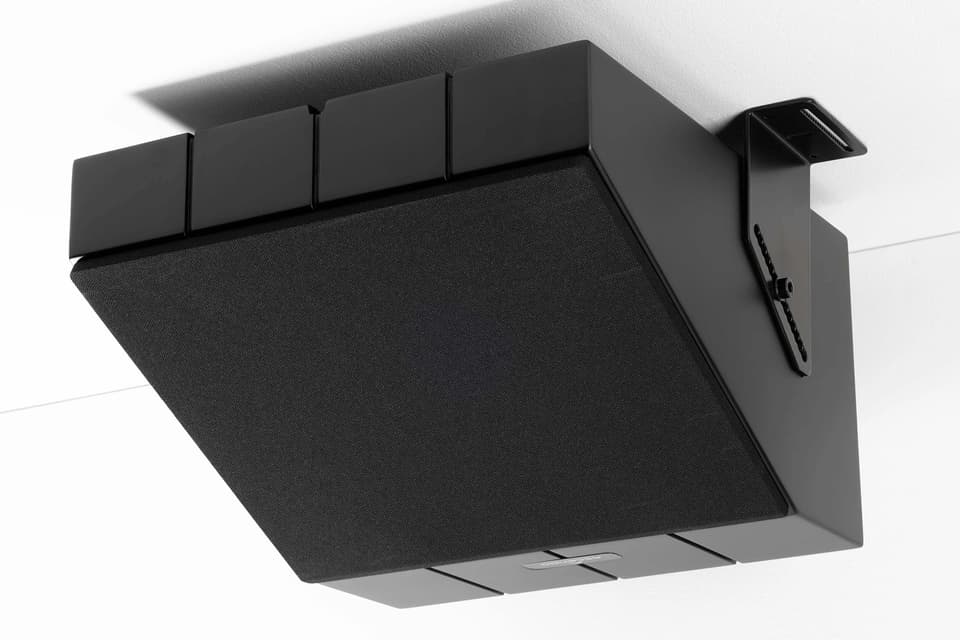

The design objective for this model was to offer a pre-angled version of THE10 PASSIVE ON WALL that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc. The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats. THE10 PASSIVE WEDGE 30 is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.
Eignet sich der The10 Passive · Wedge 30 für Dich?
Zwei Kanäle, Musik im Vordergrund.
Mehrkanal-Ton, Film im Vordergrund.
Beschallung mehrerer Räume, Musik nebenbei.
Perfekt für Dich, wenn …
- Dein Verstärker nicht viel Leistung hat.
- die Lautsprecher an einem AV-Receiver laufen sollen.
Eher nicht für Dich, wenn …
- Dein Lautsprecher auch tiefe Bässe ohne Subwoofer spielen soll.
Die Highlights von The10 Passive · Wedge 30 im Überblick
Empfindlichkeit
97 dB
Nennimpedanz
8 Ω
Frequenzgang
100 – 20.000 Hz
-3dB
Empfohlene Verstärkerleistung
500 W
Bass Konzept
Geöffnet (Bass Reflex Port)
Maximaler SPL
130 dB
Anzahl Tieftöner
1
Gehäuse
B × H × T
360 mm382 mm218 mm
nur Korpus · Gewicht 11,2 kg
Technische Daten
Treiberanzahl
- Anzahl Tieftöner
- 1
- Anzahl Hochtöner
- 1
Gehäusemaße
nur Korpus
- Höhe
- 382 mm
- Breite
- 360 mm
- Tiefe
- 218 mm
- Gewicht
- 11,2 kg

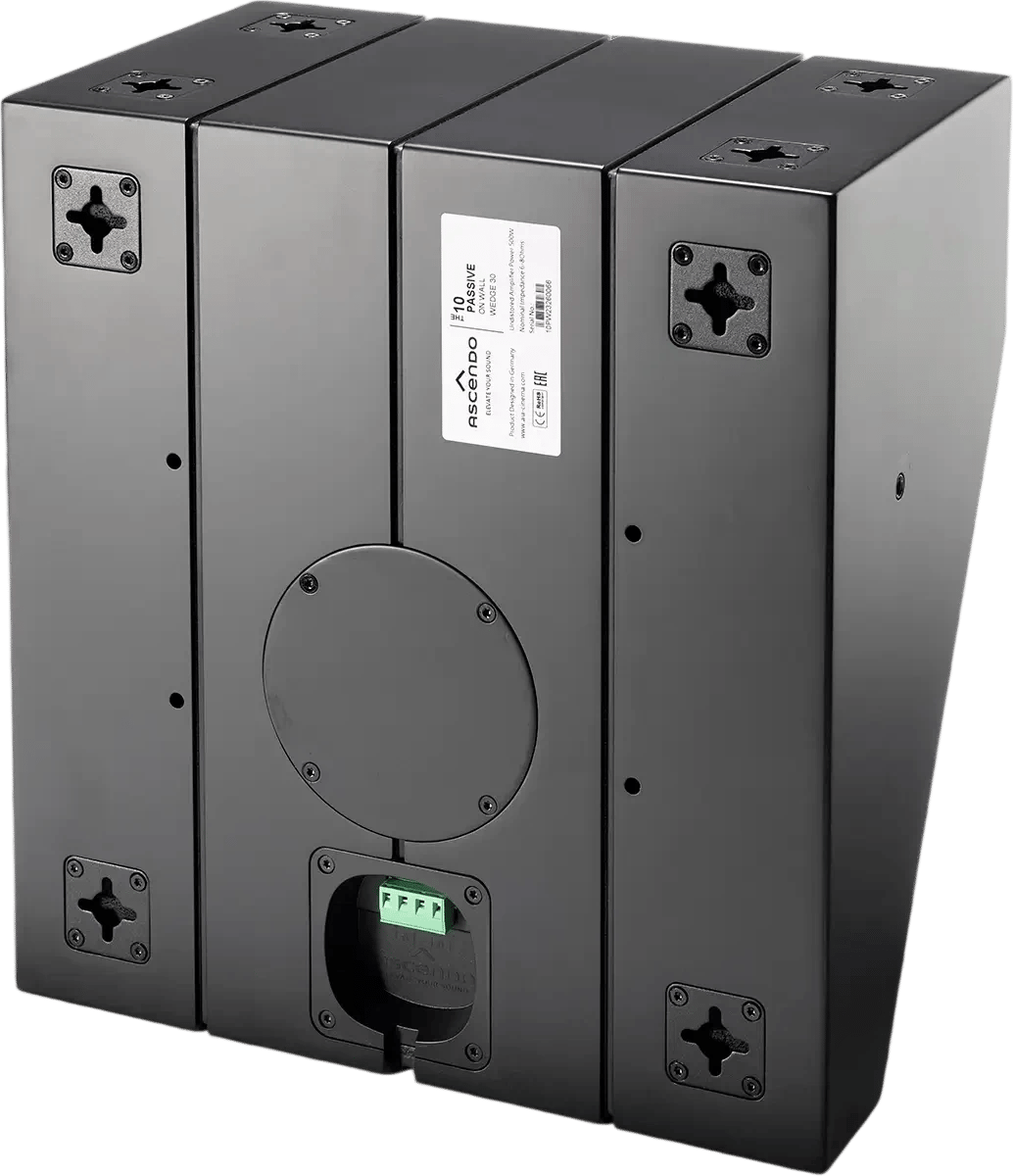

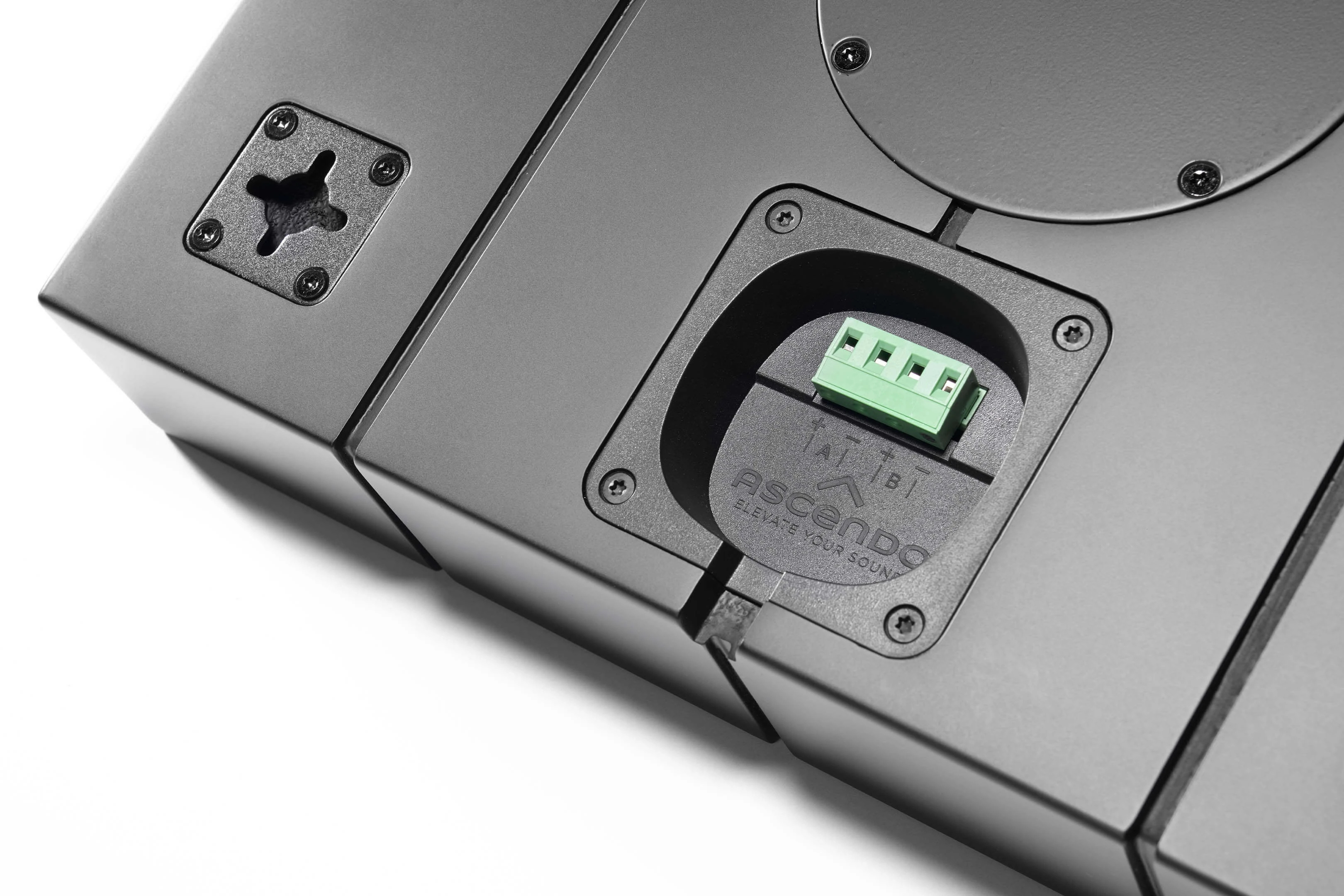

Anschlüsse
Terminal
