Der The10 Passive · On Wall kurz vorgestellt

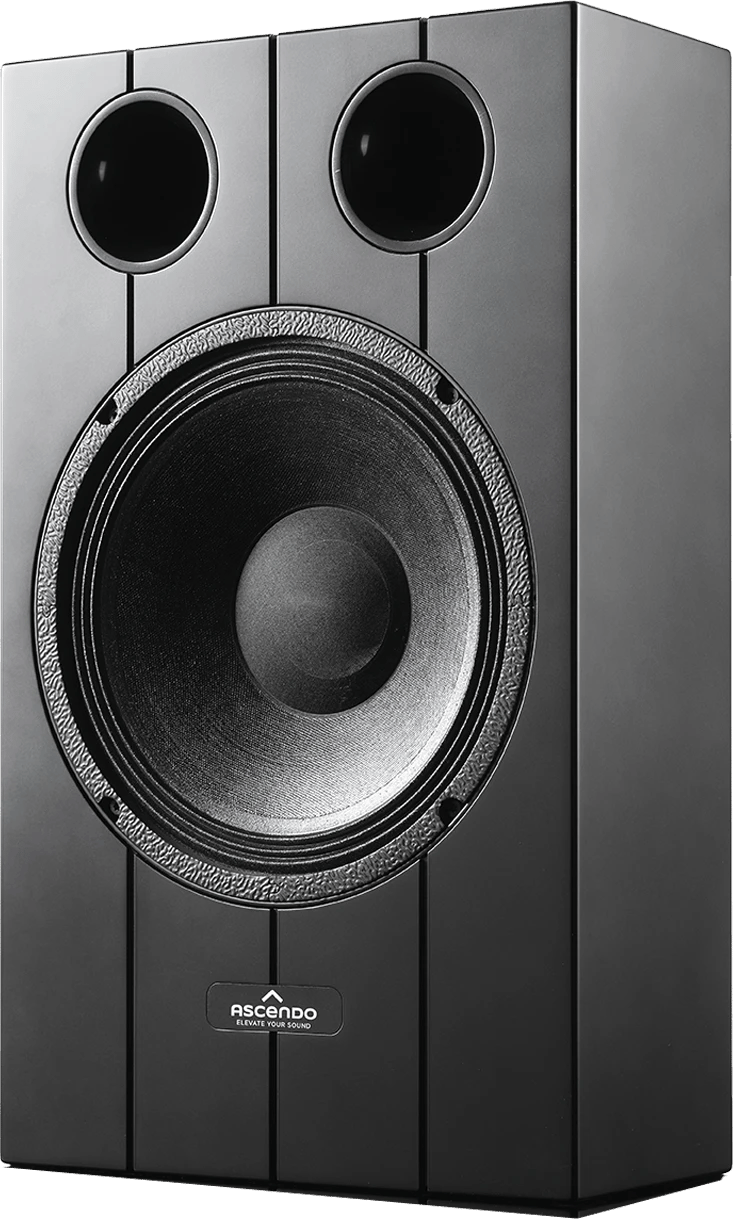

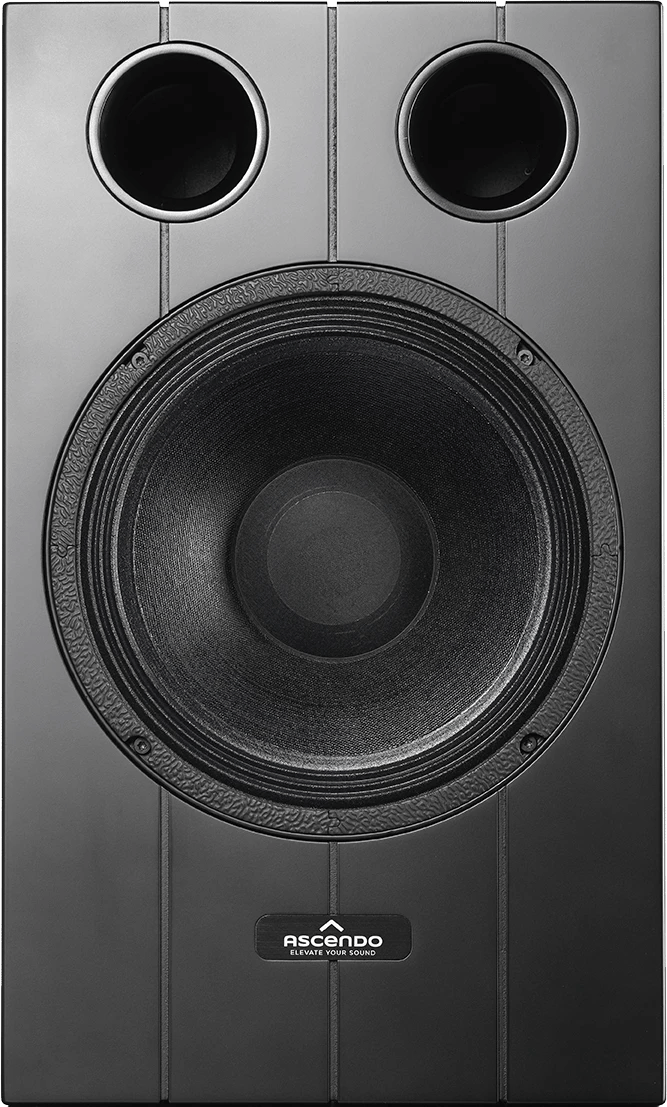

The10-P (Previous name: CCM10-P) is a very compact two-way passive loudspeaker system which utilizes a 10” (250mm) LF/1” (25mm) exit HF Coaxial driver. It is uniquely placed to meet the requirements of living room and high performance home theater systems as front speakers, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure. Use with our subwoofers will enable the The10-P to operate as small system that is remarkably powerful for its size.
Eignet sich der The10 Passive · On Wall für Dich?
Zwei Kanäle, Musik im Vordergrund.
Mehrkanal-Ton, Film im Vordergrund.
Beschallung mehrerer Räume, Musik nebenbei.
Perfekt für Dich, wenn …
- Dein Verstärker nicht viel Leistung hat.
- die Lautsprecher an einem AV-Receiver laufen sollen.
Eher nicht für Dich, wenn …
- Dein Lautsprecher auch tiefe Bässe ohne Subwoofer spielen soll.
Die Highlights von The10 Passive · On Wall im Überblick
Empfindlichkeit
97 dB
Nennimpedanz
8 Ω
Frequenzgang
100 – 20.000 Hz
-3dB
Empfohlene Verstärkerleistung
500 W
Bass Konzept
Geöffnet (Bass Reflex Port)
Maximaler SPL
130 dB
Anzahl Tieftöner
1
Gehäuse
B × H × T
300 mm500 mm145 mm
nur Korpus · Gewicht 12 kg
Technische Daten
Treiberanzahl
- Anzahl Tieftöner
- 1
- Anzahl Hochtöner
- 1
Gehäusemaße
nur Korpus
- Höhe
- 500 mm
- Breite
- 300 mm
- Tiefe
- 145 mm
- Gewicht
- 12 kg

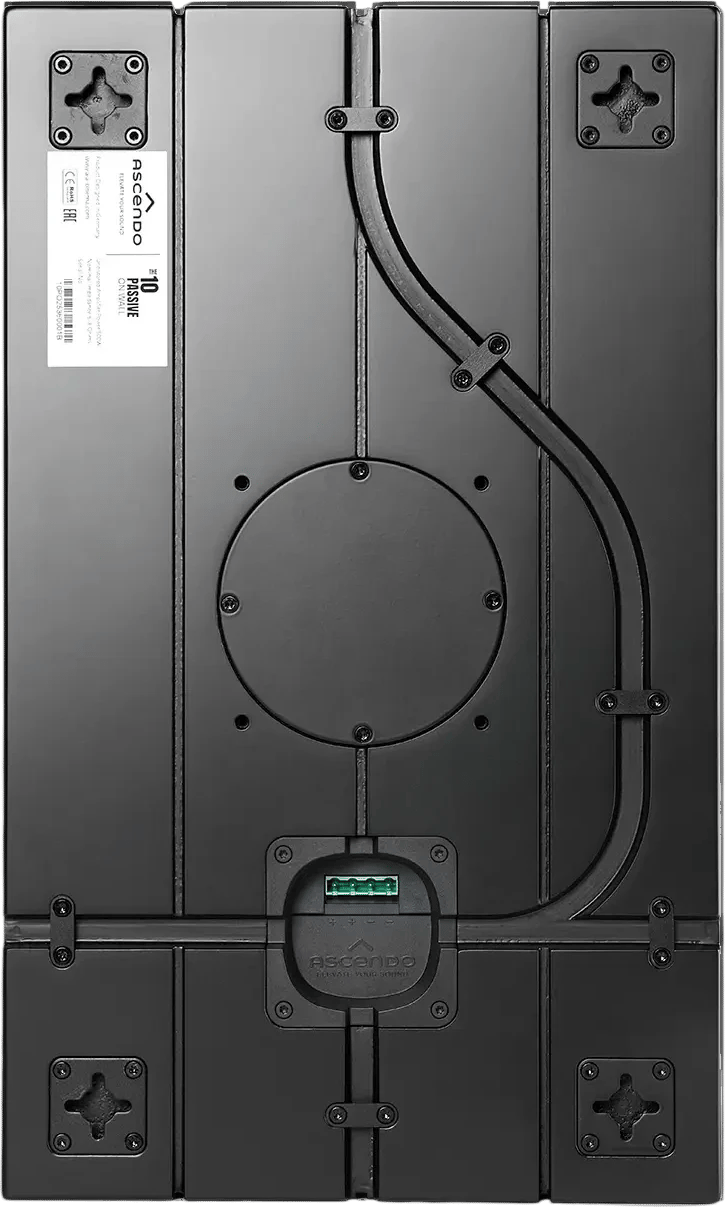

Anschlüsse
Terminal
Downloads
